1.Generator type
Pemanent Magnet Synchronous Direct drive 3Phase AC
low Torque 96v 380v 400v 450v 220v 3KW 5kw 15KW 20KW 10KW low rpm permanent magnet alternator
- Parameter
- Related products
- Inquiry
<2>Parameter
Launching the ALLRUN Torque low 96v 380v, 400v, 450v, and 220v permanent magnet alternators, for sale in 3KW, 5KW, 10KW, 15KW, and 20KW models. These alternators that are high-quality designed to provide dependable and power that is efficient for the selection of applications.
These alternators are very well designed for use within wind generators, hydroelectric systems, along with other renewable power sources using their low rpm procedure and permanent magnet design. They truly are also suitable for used in off-grid energy systems, backup energy systems, and also other applications that want reliable energy generation.
The ALLRUN brand name is known for its services that are top-notch products and gratification this is certainly excellent. With over 10 years of expertise on the market, ALLRUN has built it self as a maker this is certainly trusted of alternators, generators, along with other energy equipment.
The Torque that is low 96v 380v, 400v, 450v, and 220v permanent alternators that are magnet ALLRUN were created with effectiveness and dependability in mind. They function low opposition and low speed, making them ideal for used in low wind and low hydro surroundings.
Also, these alternators are designed for simple installation, with quick-connect terminals and a mounting system that is simple. They are also highly durable, with tough construction and materials which can be high-quality can withstand the harshest environments.
Another key feature of the ALLRUN torque is low magnet alternators the low-to-zero maintenance requirements. These devices are designed for long-term use without the necessity for regular servicing unlike old-fashioned alternators that need regular upkeep and repairs. This makes them an choice that is perfect remote places, where use of upkeep and repairs could be limited.
Model | ARPMG |
Rated Power(w) | 10kw |
Max Power(w) | 15kw |
Rated Voltage(v) | 120V/220V/380V( can adjust for your requirement) |
Rated rotated speed(r/m) | 100 RPM ( can adjust to customersize ) |
Top net weight(kg) | 200kg(Upon the RPM and power) |
Output Current | AC |
Start Torque(N*M) | 2 Nm |
Rated Torque(N*M) | 954.9 Nm(Upon RPM) |
Generator | 3 phase permanent magnet synchronous generator |
Insulation Class | F |
Service Life | More Than 25 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |

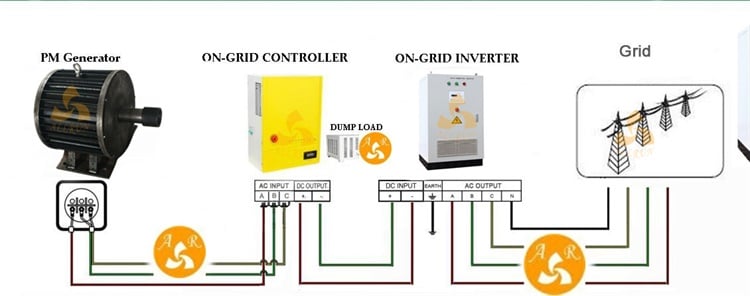

A: Grid TIE System

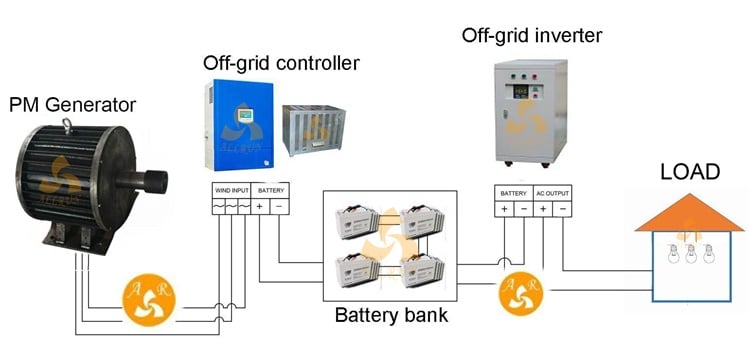

B: Off Grid System
Allrun Company can provide customized generators according to customers' requirements for voltage, speed, power, frequency, etc.
RATED POWER | RATED SPEED | RATED VOLTAGE | FREQUENCY |
0.2KW | 20rpm~400rpm | 12V~220Vac | 10Hz~60Hz |
0.3KW | 20rpm~400rpm | 12V~220Vac | 10Hz~60Hz |
0.5KW | 20rpm~400rpm | 12V~220Vac | 10Hz~60Hz |
1KW | 20rpm~600rpm | 12V~220Vac | 10Hz~60Hz |
2KW | 20rpm~1000rpm | 12V~400Vac | 10Hz~60Hz |
3KW | 20rpm~1500rpm | 48V~690Vac | 10Hz~60Hz |
5KW | 20rpm~1500rpm | 48V~690Vac | 10Hz~60Hz |
10KW | 20rpm~1500rpm | 120V~690Vac | 10Hz~60Hz |
15KW | 20rpm~3000rpm | 120V~690Vac | 10Hz~60Hz |
20KW | 20rpm~3000rpm | 120V~690Vac | 10Hz~60Hz |
25KW | 20rpm~3000rpm | 120V~1140Vac | 10Hz~60Hz |
30KW | 20rpm~3000rpm | 120V~1140Vac | 10Hz~60Hz |
50KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
80KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
100KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
150KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
200KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
250KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
300KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
500KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
700KW | 20rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
800KW | 20rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
1MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
2MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
3MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
4MW | 600rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
5MW | 600rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
2.Customizable
a.Customized Voltage,Speed,Power,Frequency.
b.Customized shaft size,Spline shaft,biaxial extension,flange can be used.
3.Varity structures design
Can be customized vertical axis, horizontal axis, internal rotor, external rotor, plate type. Therefore, as long as we know your requirements, we can provide you with suitable products.
4.Features1
a.Gearless, direct drive, low RPM generator.
b.Low start up speed due to low cogging and resistive torque design.
c.High standard, quality components for use in harsh and extreme environments for wind turbines.
5.Features2
d.Generator is designed using speciallted material and treated to resist corrosion and oxidation.
e.Designed for reliable and long operational lifetime under long-term full output.
f.Patent protected design.
We,one subsidiary company of Qingdao ALLRUN Group,are one of the high-tech enterprises specialized in solar panel,solar power projects and Permanent magnet generator (PMG).
We have have our own solar panel factory( and solar appliance products),wind products factory( include PMG),so we can well control the quality of the products.And we have our own 25-personed QC dept.And we also have 10 specialists in designing and installing solar street lights,solar power stations( solar system),and kinds of solar water pump ,solar water heaters in different sizes and models,as well as solar appliances, wind turbines systems and wind appliances.We have been honored for the excellent work,such as the Project of the municipal administration,the road administration project, the development of residential project and island project,and the supply of the heater and power voltage station.
At present,our main products include solar system products,such as various types of solar panel and solar system , solar photovoltaic applications, permanent magnet generators and wind generation sets.
If you are interested in our products,please do not hesitate to contact us with more information.We are looking forward to cooperating with you
Q1:How can we use the PMG?A:ALLRUN supply variety of permaent magent generators which is suitable for driven by following equipment to:
a.Driven by Wind Power --------Wind turbine
b.Driven by Water Power ------- Hydro generator
c.Driven by Belt with Motors
d.Driven by Motor
e.Dirven by perpetual motion machine
f.Dirven by test plant
g.Dirven by yourselves creation
h.Driven the permanent magnet generator and make it rotate then it can generate powerQ2.Which size can you supply?A:We supply from 100w to 1000kw PMG.Q3. Are your PMG three phase?A:Yes, our PMG is three phase.Q4.what the RPM of your PMG?A:We can produce different RPM for the same design, just to what you require.Q5.can we get in different colour?A:Yes,right,we can adjust to what you need,such as white colour,black colour and so on.
